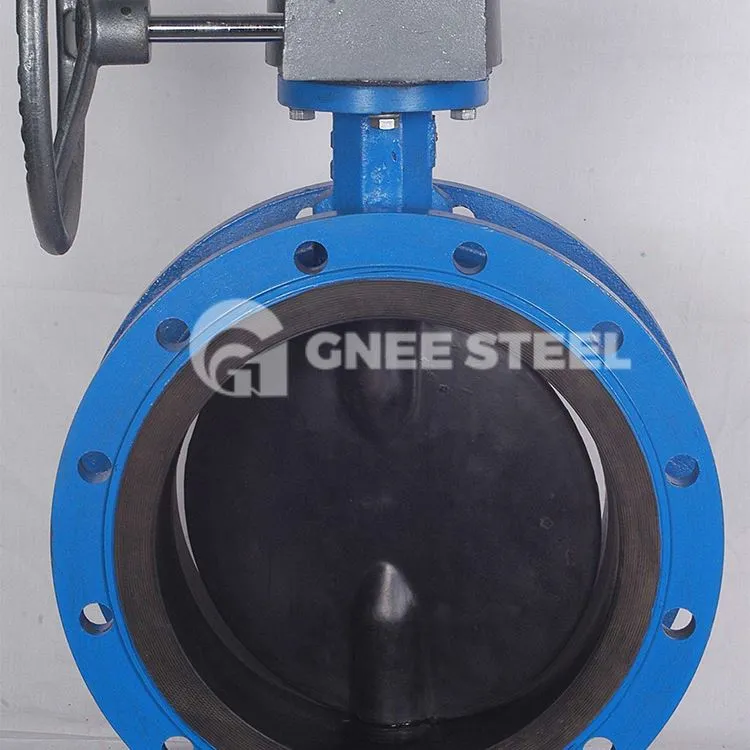

Il-kanal tal-korp tal-valv tal-farfett miksi bil-fluworin tat-tip wejfer għandu wiċċ ta 'ġewwa lixx, reżistenza baxxa għall-fluwidu, valur CV għoli, kapaċità qawwija ta' fluss, u torque moderat. Jadotta struttura ta 'siġillar ta' erba 'livelli u hija mgħammra b'kisja elastika ta' gomma SI reżistenti għat-temperatura u kontra t-tixjiħ barra l-wiċċ tas-siġillar. Is-sedil tal-valv huwa ttaffi biex jikseb kompletament żero tnixxija tal-medju.
| TIP: | Wafer, Lug, Flanġ doppju |
|---|---|
| DAQS U KONNESSJONIJIET: | DN50 sa D1000 |
| MEDJU: | Ilma, drenaġġ, ikel, Żejt, Fwar, alkali, melħ |
| MATERJALI: | Ħadid fondut / Ħadid duttili / Azzar tal-Karbonju / Stainless azzar / Alu Bronż |
| IL-KLASSJONI TAL-PRESSJONI: | PN10, PN16, 125lb, 150lb |
| TEMPERATURA: | -40 grad sa 200 grad |
| SEDIL/FORRA: | Liner/inforra sostitwibbli PTFE /PFA /TFM /UHMWPE |
| ĊERTIFIKATI U APPROVAZZJONIJIET: | DNV-GL, Lloyds, DNV, ABS, Approvazzjoni tat-Tip BV 3.1 & 3.2 Ċert (fuq talba) |
Materjal tal-Partijiet
| Korp | Ħadid fondut / Ħadid duttili / Azzar fondut / Azzar li ma jsaddadx |
| Diska | PTFE |
| Sedil | PTFE |
| Xaft | SS316 |
| Bord stamen | Ħadid duttili/Azzar fondut/Azzar li ma jsaddadx |
| Siegla fil-ġnien | Ram/Stainless steel |
| Bush | Bronż/PTFE |
| Ċirku tas-siġillar | Gomma tal-fluworin/PTFE |
| Xkafef ċirku | Coil tar-rebbiegħa |
| Dahar tas-sedil | Raża fenolika/liga tal-aluminju |
| Qoxra tal-pressjoni tas-siġillar | Gomma tal-fluworin/PTFE |
| Qoxra | PTFE |
| Thrust bearing | Irrumblar |
| Il-forelock awl | Azzar li ma jsaddadx |
Id-dimensjonijiet ewlenin tal-konnessjoni esterna tal-valv tal-farfett tal-fluworin miksi bil-wejfer huma 1.0MPa
| Dijametru nominali | Valur Standard | Referenza | |||||||||
| DN (mm) | NPS (pulzier) | L | D | D1 | D2 | f | b | Z-φd | D0 | H | W(kg) |
| PN1.0(MPa) | |||||||||||
| 40 | 11/2 | 33 | 145 | 110 | 85 | 3 | 18 | 4-φ18 | 160 | 140 | 3 |
| 50 | 2 | 43 | 160 | 125 | 100 | 3 | 20 | 4-φ18 | 200 | 200 | 4 |
| 65 | 21/2 | 46 | 180 | 145 | 120 | 3 | 20 | 4-φ18 | 250 | 250 | 6 |
| 80 | 3 | 46 | 195 | 160 | 135 | 3 | 22 | 4-φ18 | 250 | 250 | 8 |
| 100 | 4 | 52 | 215 | 180 | 155 | 3 | 22 | 8-φ18 | 300 | 185 | 12 |
| 125 | 5 | 56 | 245 | 210 | 185 | 3 | 24 | 8-φ18 | 300 | 203 | 18 |
| 150 | 6 | 56 | 280 | 240 | 210 | 3 | 24 | 8-φ23 | 200 | 225 | 28 |
| 200 | 8 | 60 | 335 | 295 | 265 | 3 | 26 | 8-φ23 | 200 | 275 | 56 |
| 250 | 10 | 68 | 390 | 350 | 320 | 3 | 28 | 12-φ23 | 240 | 315 | 72 |
| 300 | 12 | 78 | 440 | 400 | 368 | 4 | 28 | 12-φ23 | 240 | 348 | 88 |
| 350 | 14 | 78 | 500 | 460 | 428 | 4 | 30 | 16-φ23 | 280 | 415 | 170 |
| 400 | 16 | 102 | 565 | 515 | 482 | 4 | 32 | 16-φ25 | 280 | 460 | 145 |
| 450 | 18 | 114 | 615 | 565 | 532 | 4 | 32 | 20-φ25 | 320 | 500 | 165 |
| 500 | 20 | 127 | 670 | 620 | 585 | 4 | 34 | 20-φ30 | 320 | 530 | 195 |
| 600 | 24 | 154 | 780 | 725 | 685 | 5 | 36 | 20-φ30 | 360 | 610 | 268 |
| 700 | 28 | 165 | 895 | 840 | 800 | 5 | 40 | 24-φ30 | 360 | 675 | 320 |
| 800 | 32 | 190 | 1010 | 950 | 905 | 5 | 44 | 24-φ30 | 360 | 805 | 395 |
| 900 | 36 | 203 | 1110 | 1050 | 1005 | 5 | 46 | 28-φ34 | 380 | 995 | 450 |
| 1000 | 40 | 216 | 1220 | 1160 | 1115 | 5 | 50 | 28-φ34 | 400 | 1170 | 680 |
| 1200 | 48 | 254 | 1450 | 1380 | 1325 | 5 | 56 | 32-φ41 | 400 | 1295 | 825 |
